In this article, we will show you how to fill in the buildings and locations template, which allows you to import this information to Infraspeak using the Importers.



TABLE OF CONTENTS

1. How to fill in the Buildings & Locations template?


1.1 Downloading the template.

  1. You can find the templates here, or feel free to ask for them to your Customer Success Manager.
  2. If you're downloading the template, use the Complex Buildings template.


1.2 Template structure

  1. On the first page of the Excel file, you will find a lot of information on how to fill in your template, including a video tutorial (see it here).

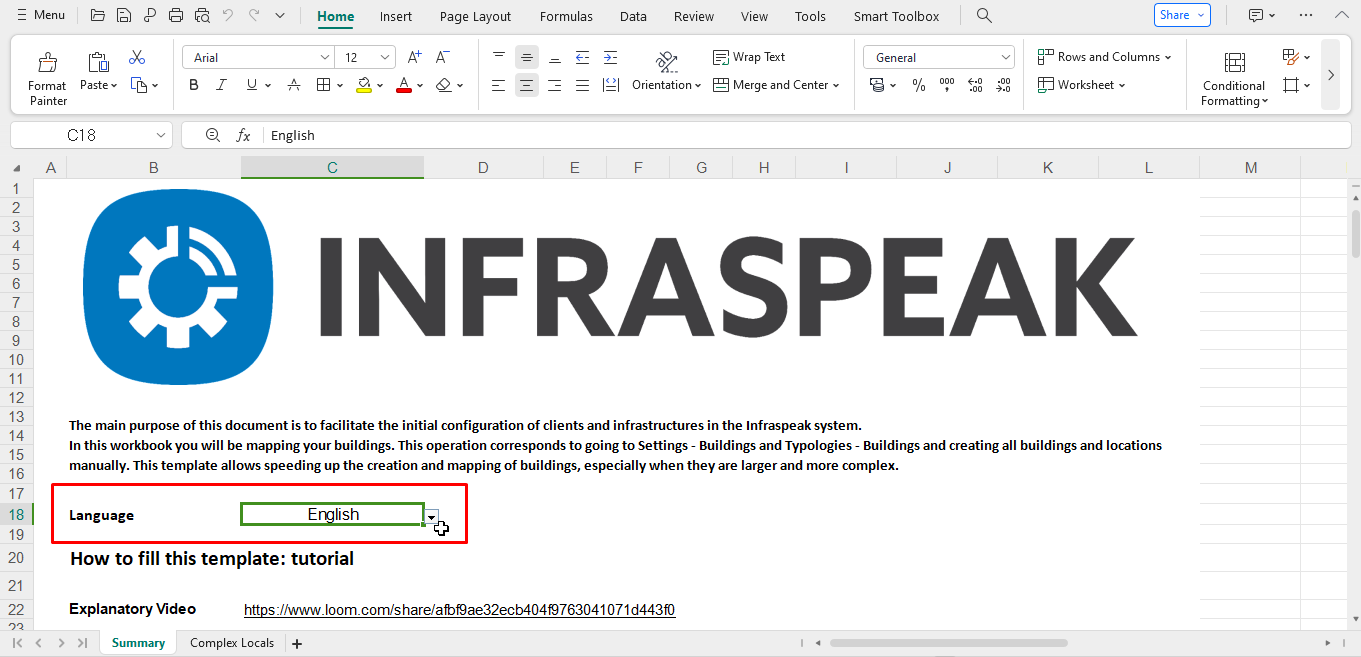

  2. Firstly, you'll need to select the language of your file:

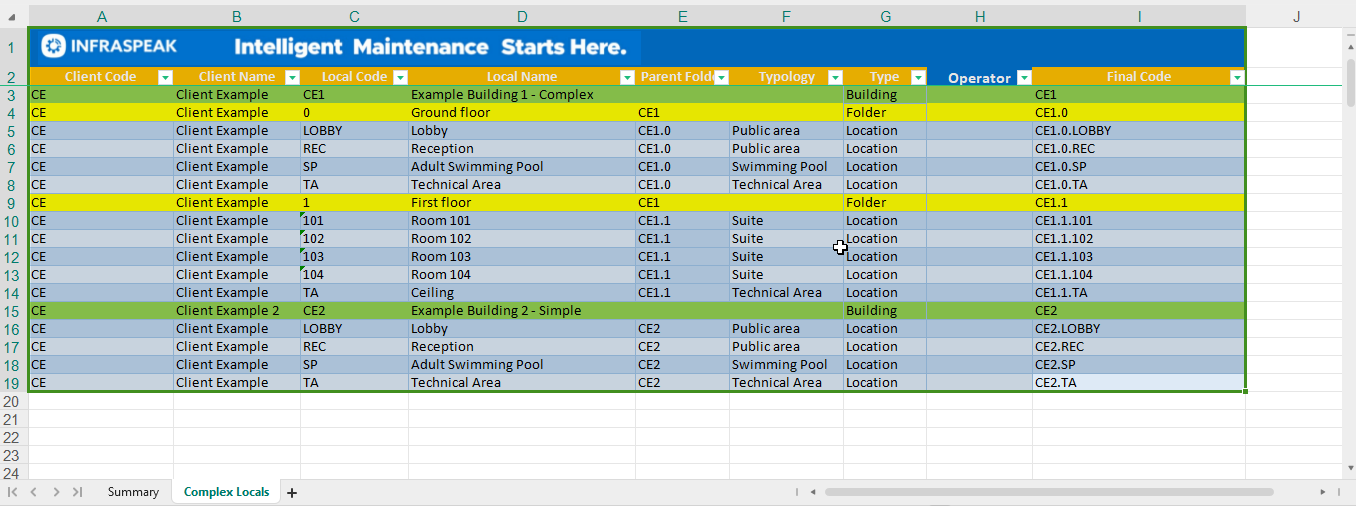

  3. Next, you'll find an explanation of what information you'll need:
    1. Client Code: This code corresponds to the client to which the building/folder/location will be associated. The client code was previously created in the “Client, Locals and Operators” workbook or the platform.
    2. Client Name: This name corresponds to the client to which the building/folder/location will be associated. The client name was previously created in the “Client, Locals and Operators” workbook or the platform.
    3. Local Code: The local code will be used by Infraspeak to catalogue locals in the database and differentiate them from other locals with the same name.
    4. Local Name: This is the name by which the folder/location will be known.
    5. Parent Folder: Infraspeak uses a tree structure to organize buildings, with buildings being the top level, and inside a building we can have folders and/or locals, and inside folders we can have more folders and/or locals and so on. This field indicates how the building tree will be organized.
    6. Typology: This field indicates the type of area we are creating as it can be a bathroom, room, hallway, etc. More types can be added as required in each case. You can insert General as default setting.
    7. Type: This field indicates what type of structure we want to create.
    8. Operator: If we want to associate a user or more than one user to a building or local, we just have to insert his email in this column (for more than one user, use “;” to separate their emails)
  4. Keep in mind, all Orange columns are mandatory.

2. Where to find the information on the platform?

2.1 Client code and name:

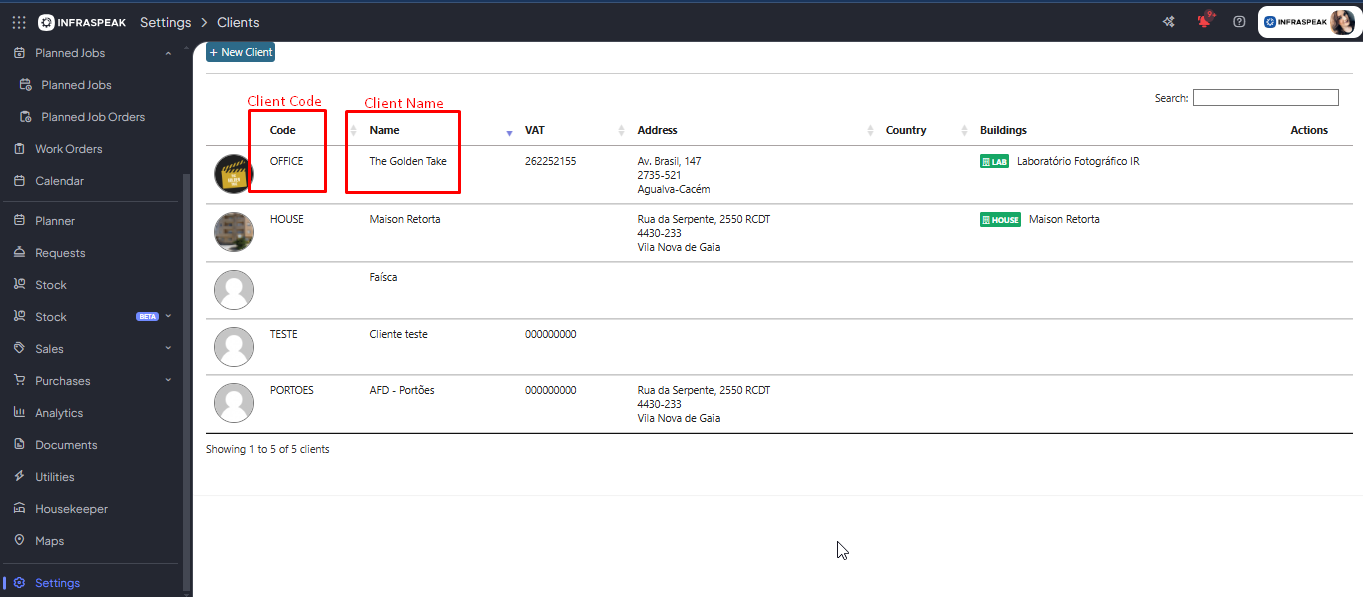

Open Infraspeak and go to settings > clients.

2.2 Typology:

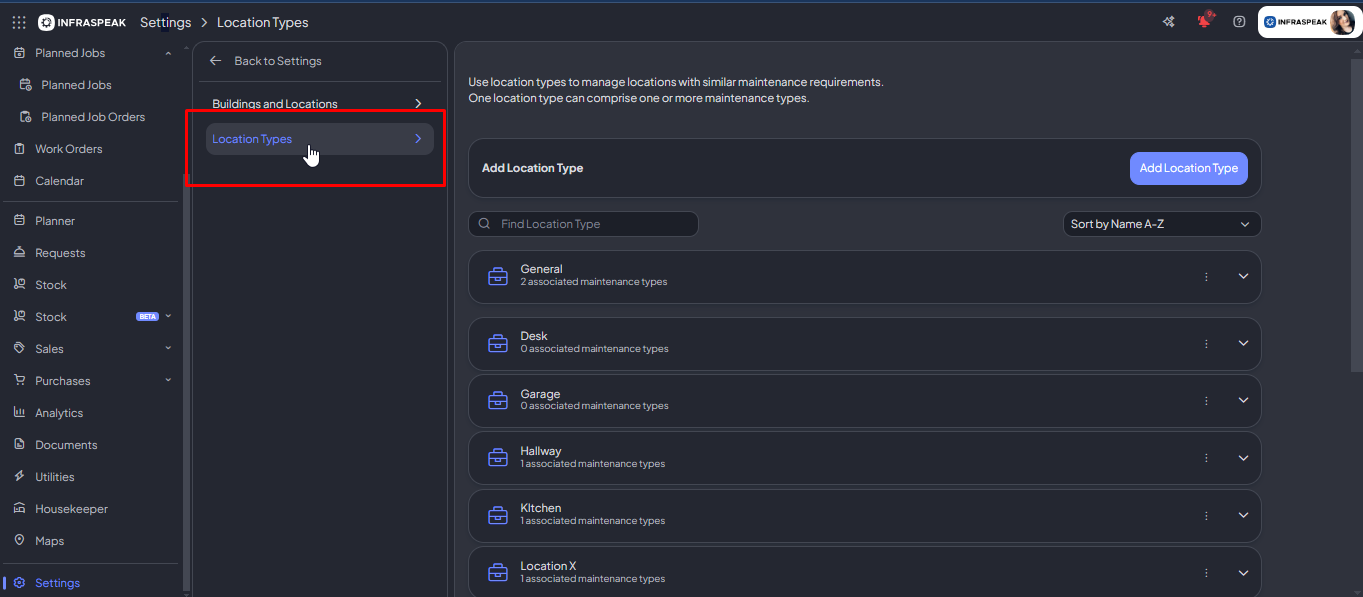

Go to settings, and then under Buildings and Locations, select Location Types:
