On This article we will learn how to:

  • Create an equipment on the Infraspeak Platform
  • Set equipment technical characteristics and other relevant info
  • Assign a NFC Tag to a new equipment
  • Assign a QR Code to a new equipment



1. Open the Infraspeak Next App and tap on the + Menu




2. Tap on Create Equipment

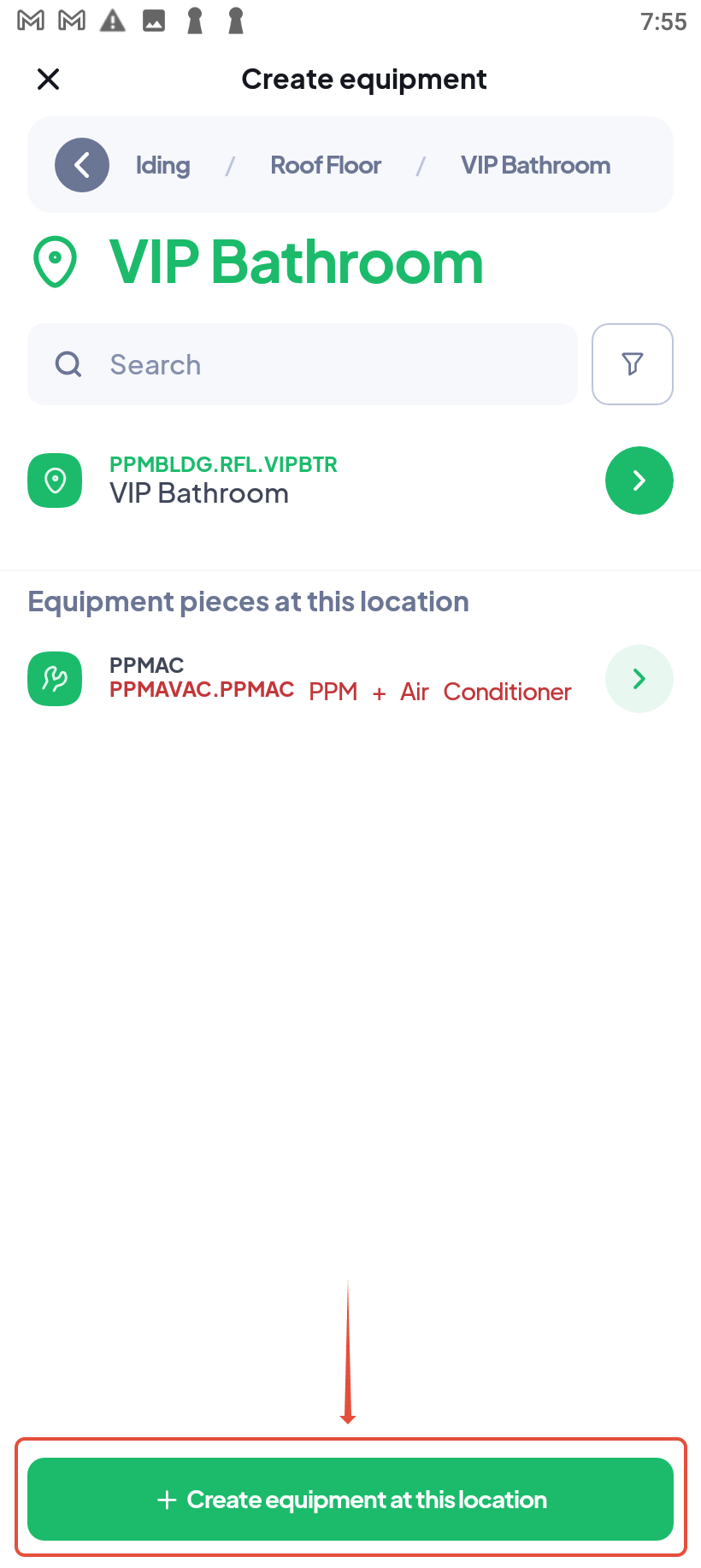

3. Browse for the desired location where you want to create the Equipment and tap on "Create equipment at this location"

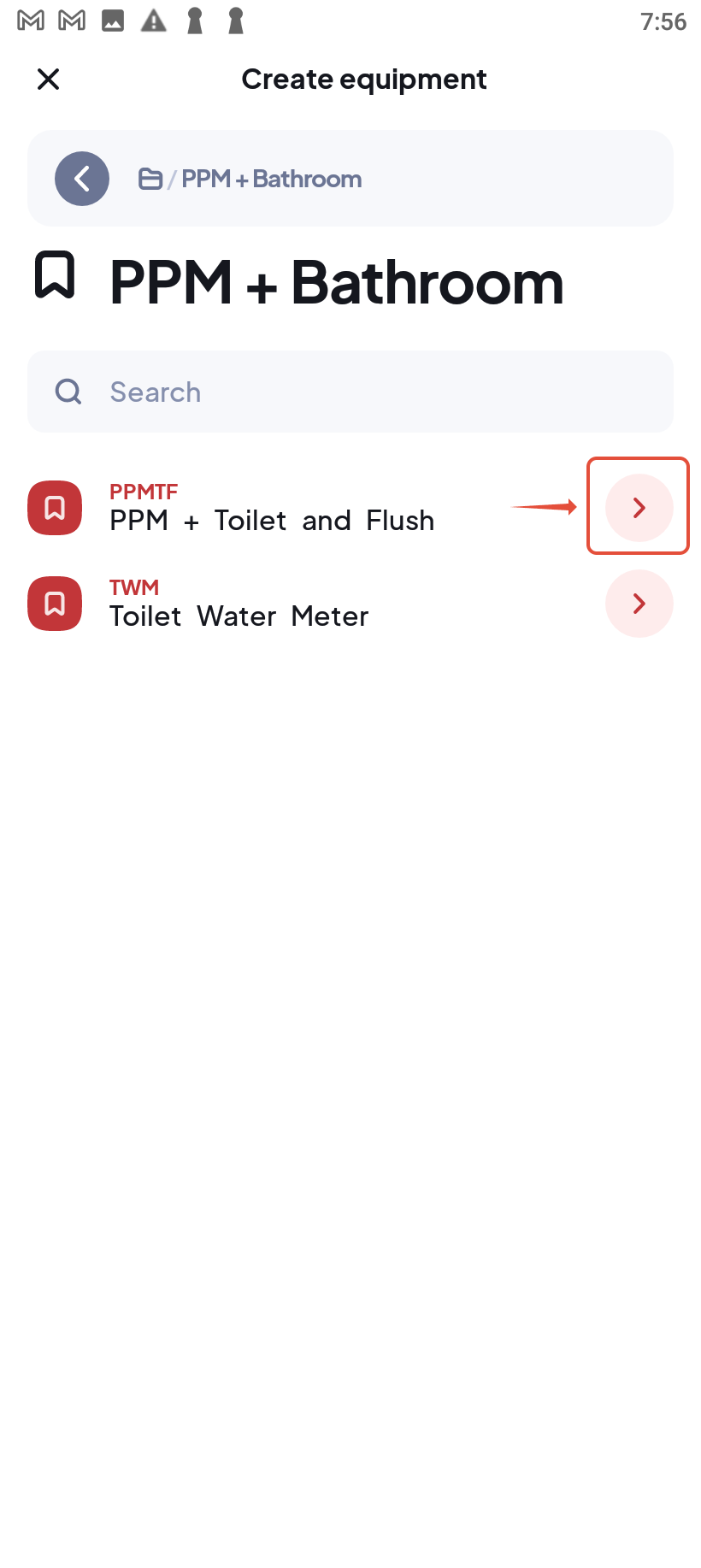

4.Select the desired type for the equipment and tap on the Equipment category Arrow button

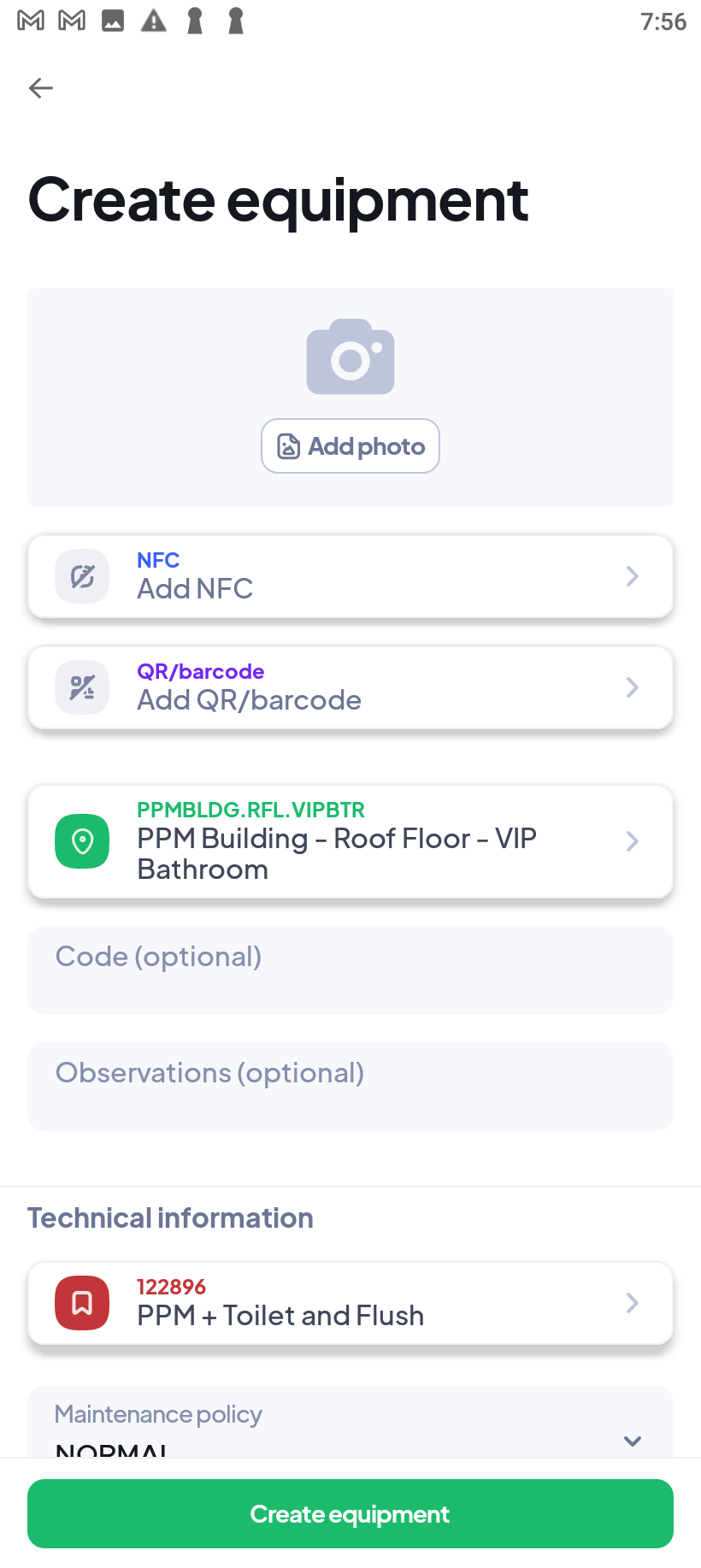

5. Fill the desired info for the equipment


On this step you can:

  • Assign a NFC Tag to the equipment(optional)
  • Assign QR Code to the equipment (optional)
  • Set a code for the equipment (optional)
  • Set the maintenance policy for this equipment (optional)
  • Set the desired technical characteristics for this equipment (optional)

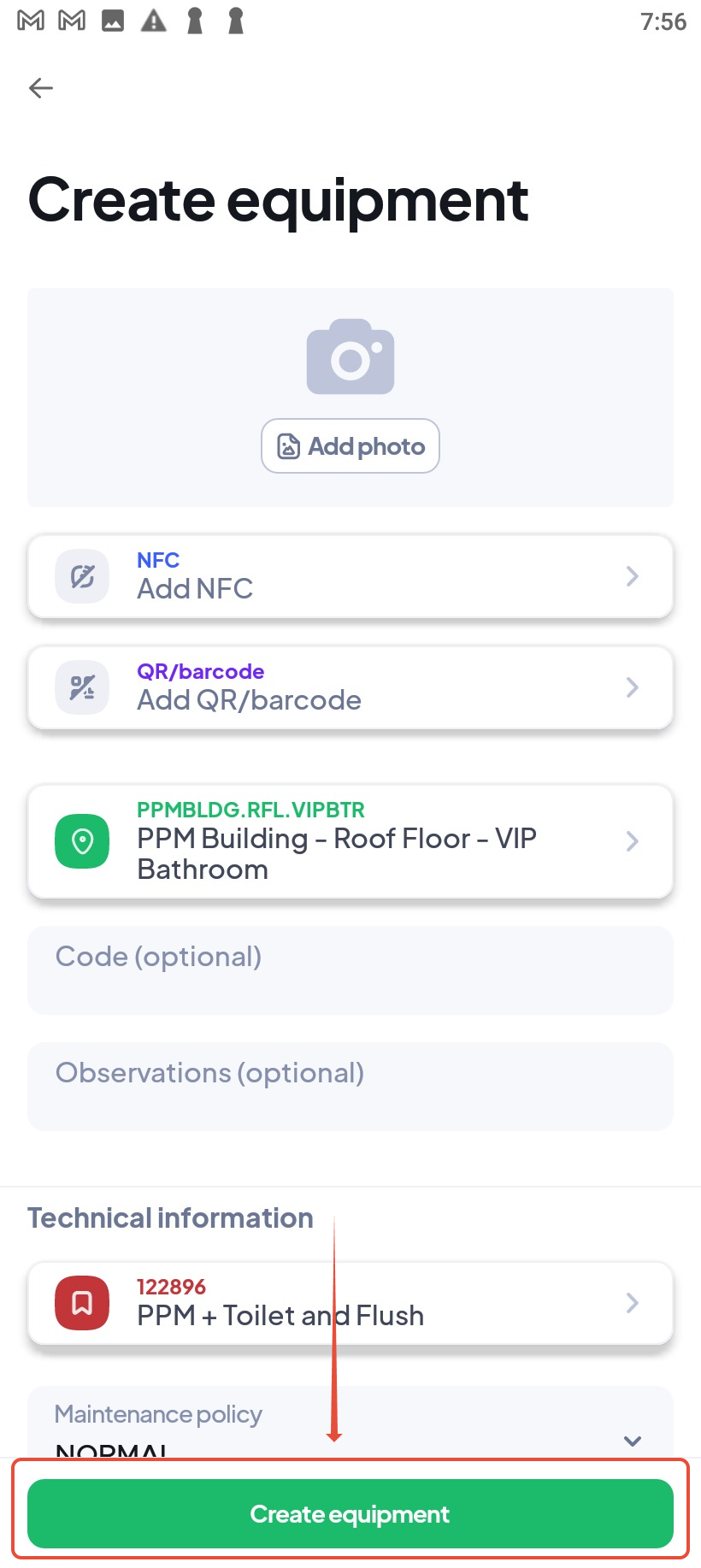

6. After filling the desired fields you tap on "Create Equipment" and the equipment will be created will all the info inserted.
